SFM-AT850
THE NEXT BENCHMARK
THE NEXT BENCHMARK
QUICK FACTS
- Great flexibility in part sizes while maintaining a compact footprint
- E-version with ultrasonic excitation
- Easy front-top loading
- Intelligent depowdering with SPR-Pathfinder®
- For the flagship printers EOS M4 ONYX and NXG XII 600

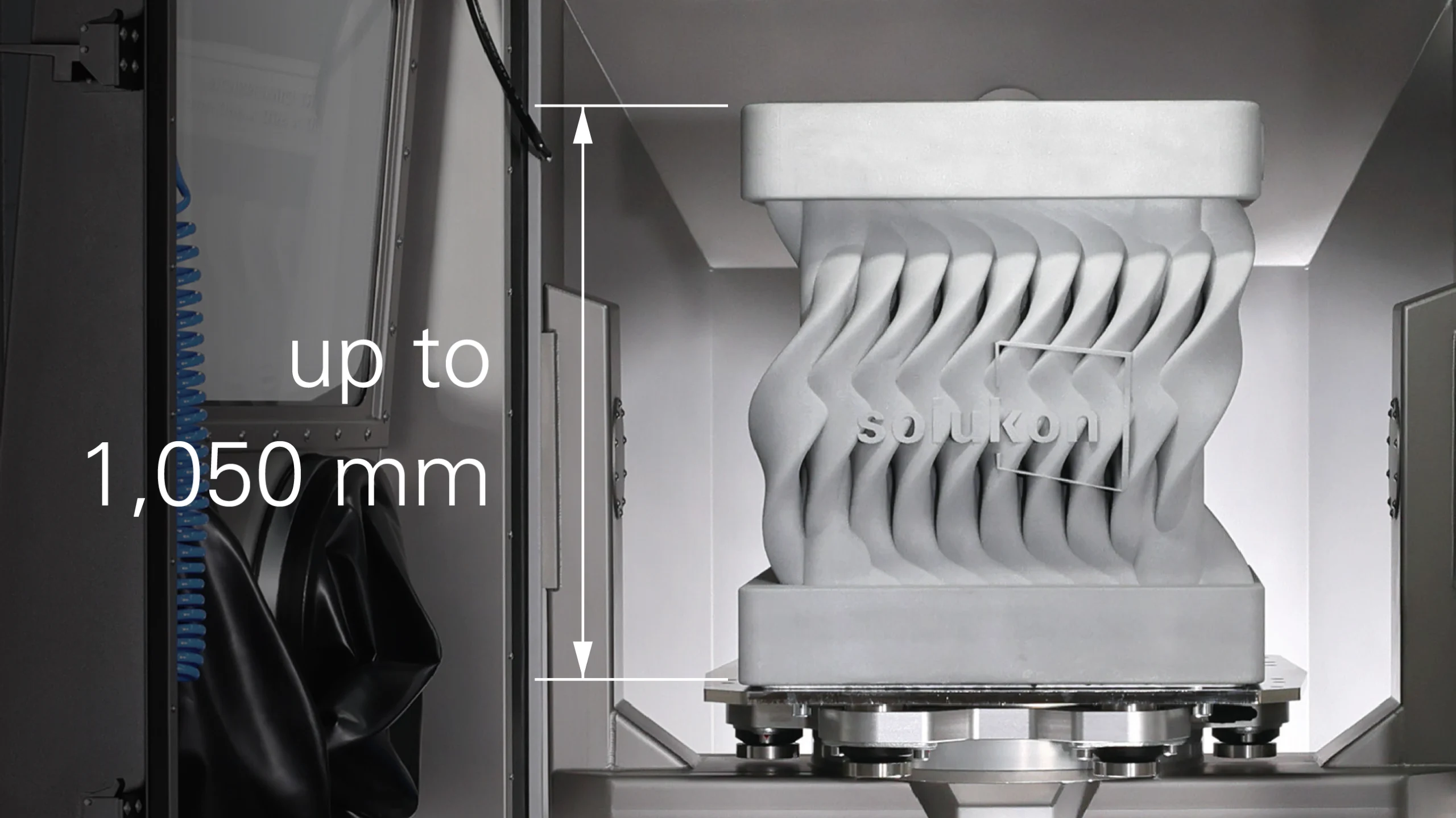

- Option with long swivel arm for parts with a height up to 1,050 mm
PART
| Dimensions | 650 x 650 x 800 mm |
| Weight | max. 1,000 kg (incl. build plate) |
COMPACT SYSTEM WITH OPTIMIZED CHAMBER VOLUME
The depowdering system SFM-AT850 can accommodate parts of considerable size and weight, up to 1,000 kg, while remaining compact. Its overall dimensions are smaller than those of its predecessor, the SFM-AT800-S. This saves space in production and delivers a perfect footprint-to-benefit ratio. In addition to the standard version with a short arm, the SFM-AT850 is also available with a long swivel arm for parts up to 1,050 mm in height.
SFM-AT850-E: DEPOWDERING WITH ULTRASONICS
As an alternative to the standard version with pneumatic excitation, the SFM-AT850 is also available in the E-version with ultrasonic excitation. Ultrasonic cleaning is particularly suitable for very delicate structures, as it provides exceptionally gentle cleaning.
EASY FRONT-TOP LOADING
When the top opens, it folds up together with the upper door frame, such that the part can be inserted at the height of the rotary table with even more flexibility – it’s no longer necessary to ”thread in” the part from above. This makes it easy to load heavy parts by crane.
NEW FEATURES IN MACHINE SOFTWARE AND INTELLIGENT DEPOWDERING WITH SPR-PATHFINDER®
On the SFM-AT850, different user levels with different access rights can be set up. Cleaning programs can be managed and assigned directly at the machine.The latest Solukon system is, of course, compatible with SPR-Pathfinder® as well. Based on the part’s CAD file, the software calculates the ideal movement pattern, with no manual programming required.
SFM-AT850 PRODUCT DETAILS
| FEATURES | 850 | 850E |
|---|---|---|
| Automated 2-axis swivel device | ✓ | ✓ |
| Front-top loading | ✓ | ✓ |
| Standard rotation plate for part mounting * | ✓ | ✓ |
| Short swivel arm | ✓ | ✓ |
| Long swivel arm for parts up to 1,050 mm in height | optional | – |
| 2 additional compressed air or inert gas connections on the rotation plate | ✓ | ✓ |
| Glove ports for manual depowdering | ✓ | ✓ |
| Joystick | ✓ | ✓ |
| Digital-Factory-Tool | ✓ | ✓ |
| Ready for SPR-Pathfinder® ** | ✓ | ✓ |
| Excitation mode | ||
| Pneumatic vibrator | ✓ | – |
| High-frequency knocker ATEX | ✓ | – |
| Ultrasonics | – | ✓ |
| Inertisation package (ATEX) for reactive materials | optional | optional |
| Peripheral equipment | ||
| ULT package (dust removal for non-reactive materials) | optional | optional |
| Automated powder conveying with SFM-PCU | optional | optional |
* The standard rotation plate includes holes for the following printers:
AMCM M 4K
EOS M 290 M 300, M 400, M4 ONYX,
SLM 280, 500, NXG XII 600
Renishaw RenAm500Q
Colibrium Additive M Line
**The software license is not included and must be ordered separately.
- Powerful dust removal for non-reactive materials
- Protective gas inertization for reactive materials in accordance with ATEX
- SPR-Pathfinder® Software for simulating and programming the cleaning program
- Programmable knocker
- Direct connection to a recycling unit
- Top loading
- Digital-Factory-Tool
- OPC UA interface (Industry 4.0 ready)
| TECHNICAL DATA | |
|---|---|
| Machine dimensions (W x D x H) | 2,140 x 1,370 x 2,160 mm |
| Installation space (W x D x H) | 3,500 x 2,500 x 3,000 mm |
| Weight | 1,100 kg |
| Supply voltage / frequency | 400 / 50 – 60 V/Hz |
| Power consumption | 1.5 kW |
| Power connection | 16 A |
| PART | |
|---|---|
| Weight | max. 300 kg |
| Dimensions | up to 600 x 600 x 600 mm or 800 x 400 x 550 mm |
